ASHBottle Shape FRP & Rectangular / Wooden Cooling Tower
SI

Bottle Shape FRP Cooling TowerCasting : Casting to Tower made of Fiber Glass Reinforced Plastic. The cooling Tower designed and constructed for minimum maintenance and long lasting, you can able to operate in aggresive environment and resistant to water born contaminants.

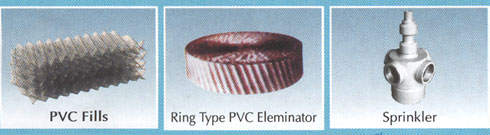

P.V.C. Fill : A pre - eminent quality and long life fill consists if moduler block of honey combs construction to create prolonged contact time of hot air water for maximum heat transfer. The air pressure drop through the fill sincerely negligible.

Drift Eliminator : To reduce carry over losses through entertainment of moisture drops in the air stream by specially designed multi blade rotary drift eliminator made of F.R.P. Aluminium sheets.

Bottle Shape FRP Cooling TowerSpinkler : The uniform distribution of water over the honey combs fill this sprinkler rotates by self propulsion and eliminated the need for atomising the water through nozzles. The head side include ball bearing requiring minimum maintenance.

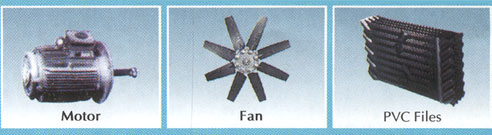

Motor : Electro Magnetic designs of the entire range of New India and Bharat Motor covered by 3N series have been developed in keeping with the latest national and international practice and confirm in general to 1 EC recommendations.

Fan : An aero - dynamically axille flow type fan is well balanced construction. The Fan blades are of case aluminium alloy, fan with variable pitched blades is dynamically balanced for low vibration and efficiency.

Design Parameter :
Flow rate : m3/hr (max)
Inlet Temperature : 42* C
Outlet Temperature : 32* C

TECHNICAL DETAIL OF "STRUCTURE INDIA" FRP BOTTLE SHAPE COOLING TOWERS

S.No.

Model

Capacity TR

Heat Rejection Kcal/hr x1000

Dia.
  mm

Height

   mm

Fan dia

    mm

Motor

HP/RPM

Inlet
Outlet Size mm

Operating weight Kg.

Pump Head MM WC

01.

SI-FB-81

       7.5

 28

  900

2000

  600

0.75/960

 40

  210

 180

02.

SI-FB-101

10

 38

  900

2000

  600

1/960

  40

  250

  200

03.

SI-FB-151

15

 56

1100

2000

  700

1/960

 40

  350

  200

04.

SI FB-251

25

 98

1900

2300

  900

2/960

 50

 520

2500

05.

SI-FB-301

30

115

1900

2300

  900

2/960

 50

  600

2500

06.

SI-FB-401

40

160

2200

2900

1200

2/960

 50

  800

3000

07.

SI-FB-501

50

190

2200

2900

1200

2/960

 80

  900

3000

08.

SI-FB-601

60

225

2200

2900

1200

3/960

 80

1200

3000

09.

SI-FB-801

80

320

2900

3100

1450

3/960

 80

1500

3000

10.

SI-FB-1002

100

380

2900

3100

1450

5/960

100

1650

3200

11.

SI-FB-1252

125

477

3250

3100

1500

5/960

100

1850

3200

12.

SI-FB-1502

150

568

3250

3100

1500

7.5/960

100

1950

3400

13.

SI-FB-1752

175

645

3700

3300

1800

7.5/960

150

2200

3400

14.

SI-FB-2002

200

775

3700

3300

1800

10/720

150

2300

3500

15.

SI-FB-2502

250

940

4200

3600

1800

10/720

150

3400

3800

16.

SI-FB-3002

300

1128

4200

3600

1800

10/720

150

3700

3800

17.

SI-FB-4002

400

1550

6000

3800

3000

15/560

200

6000

4200

18.

SI-FB-5002

500

1890

6000

4100

3000

15/560

200

6500

4500


Note: The Company operates a policy of continuous improvement & reserves the right to amend the above data without notice.

ASHRectangular / Wooden Cooling Tower
SI

We are proud to offer you the complete range of Cooling Tower that includes wooden & F.R.P. Cooling Tower. We also offers the spare parts & maintenance for all type of cooling towers through our highly technically equipped supports for all kinds of industrial heat exchangers including Air Compresors, Injection Moulding Machines, Induction Furnace, Air Conditioning, Refrigeration & Diesel Engine Generating Sets etc.

Rectangular Shape Cooling Tower Wooden Cooling Tower Wooden Package Type Cooling Tower

Rectangular Shape Cooling Tower

Rectangular Shape Cooling Tower
